Install DC Core 2019 with 0 trust NSG in Azure

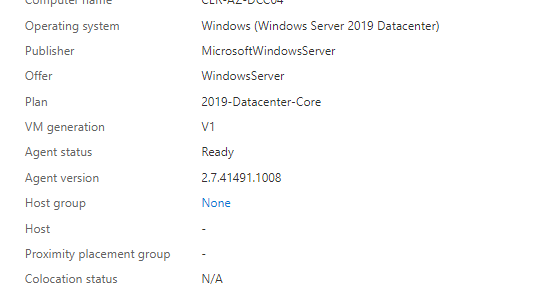

Firstly well look at the specs that in this case I have used for this matter

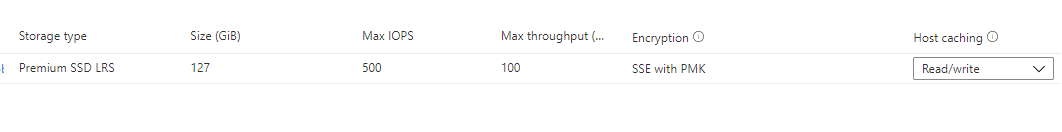

In this case since is a Core server we selected B1mS with premium SSD

Ensure you patch the server using Sconfig. Beforehand raising it as a Domain controller .

Recommended 0 trust config NSGS ( only for AD , it comes with Remote desktop disabled so you open it when needed to interact from the server) Seven IT recommends that you use a PAW or jump server to connect to AD from a vpn network for security reasons . If you are unsure how to understand this part skip it.

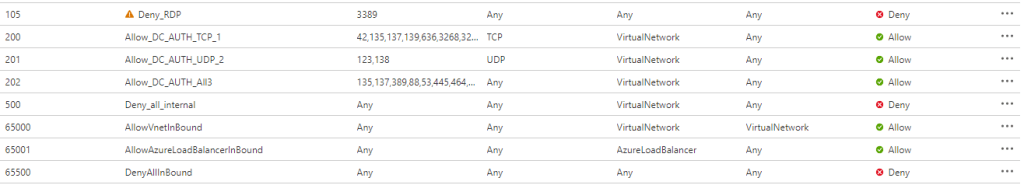

This NSG config will leave the server not contactable as you can see we block RDP in rule 105

You must open RDP if you wish to make changes , This is just for security model 0 trust

105: Blocks RDP from any source

200: TCP AD ports

201: UDP AD ports

202:TCP/UDP ( ephemeral ports )

500: Deny all rest of traffic

Inbound

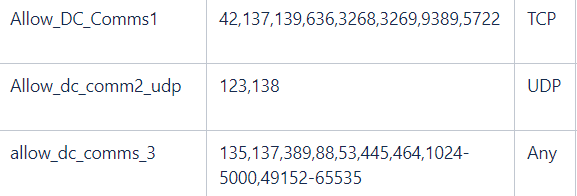

Breakdown of Inbound ports

Raising the domain controller

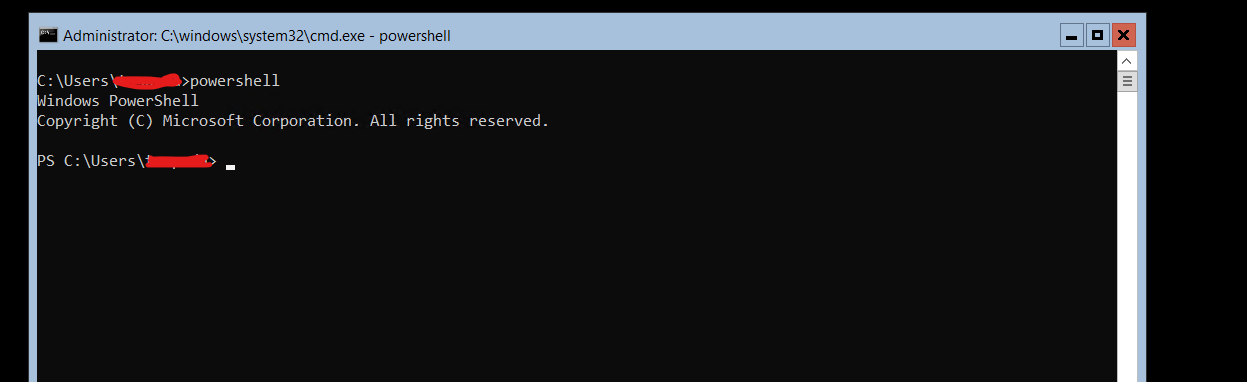

1.Load PowerShell

2.

Run

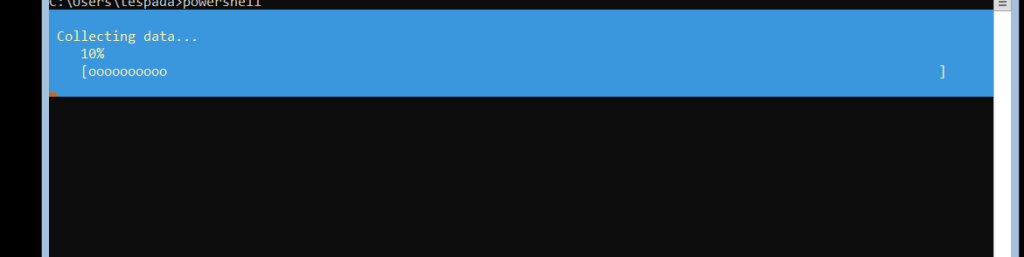

Install-WindowsFeature -Name AD-Domain-Services -IncludeManagementTools

As per azure specs if you have configured the DNS in the Network you don’t need to change anything in the network cards so we will raise the DC with the following command:

Where your domain name = domain name + user

Install-ADDSDomainController -InstallDns -Credential (Get-Credential <DomainName\Administrator>) -DomainName <DomainName> -SafeModeAdministratorPassword (ConvertTo-SecureString -AsPlainText "<Administrator Password>" -Force)

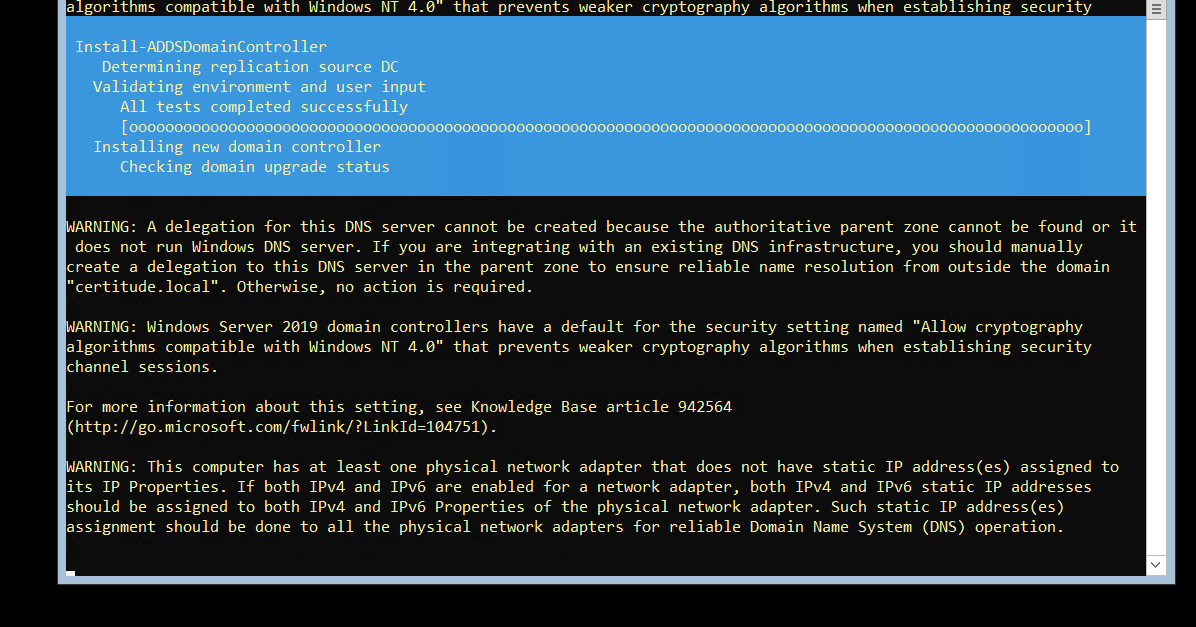

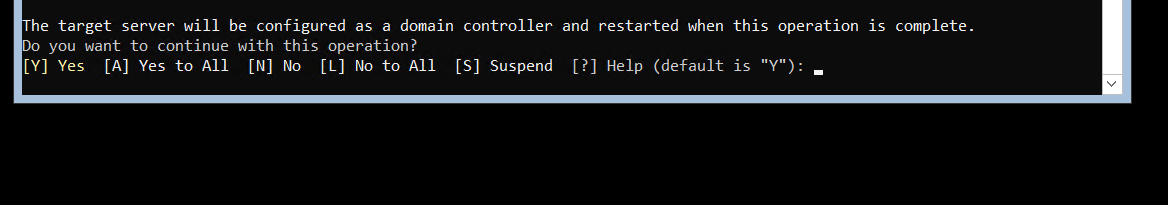

The warnings are completely normal

Make sure in Azure you have set STATIC IP on the VM .  And that you have configured the dns’s in the Vmnetwork as follows:

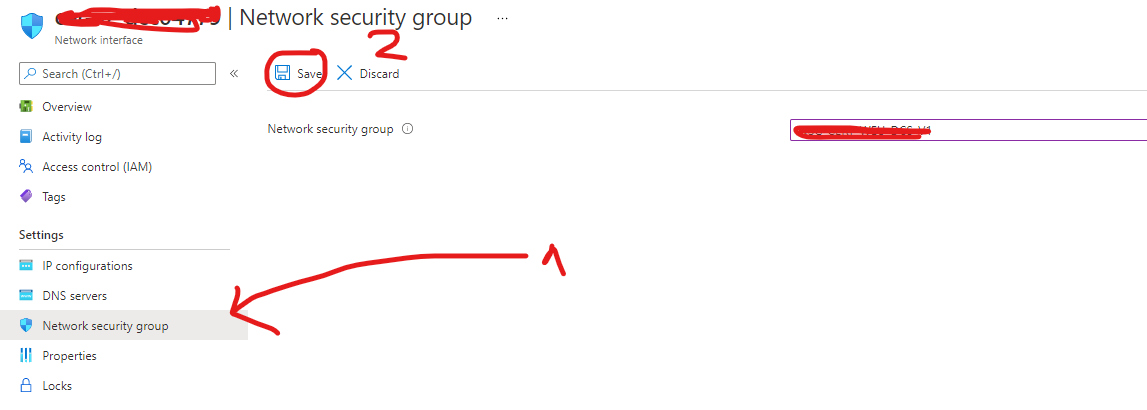

If you have to assign a NSG also you can change it here,

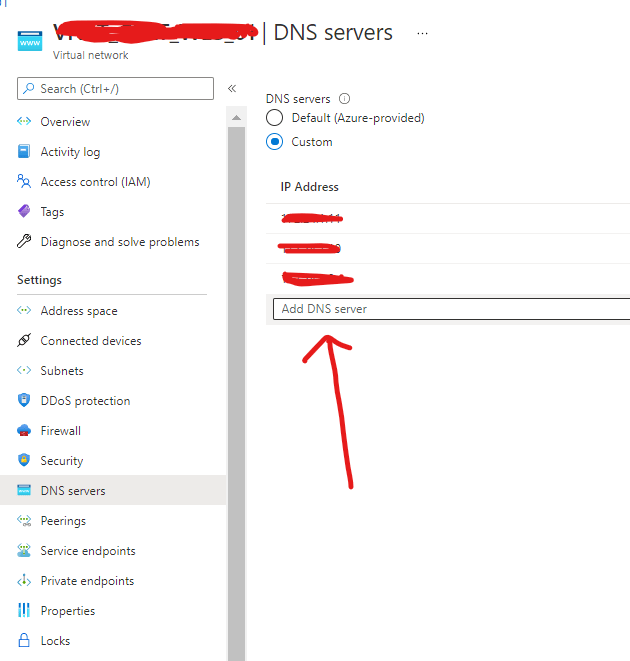

VMNET ( adding DNS settings ) . If you using Azure vpn this will cause the clients to disconnect !

Now you should have your new core DC up and running in the azure enviorment.
